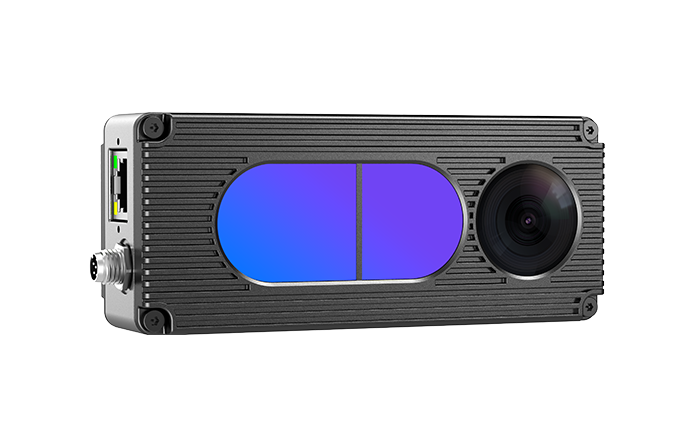

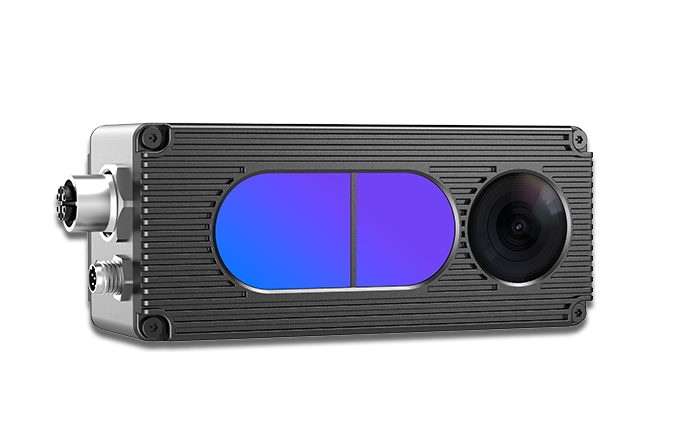

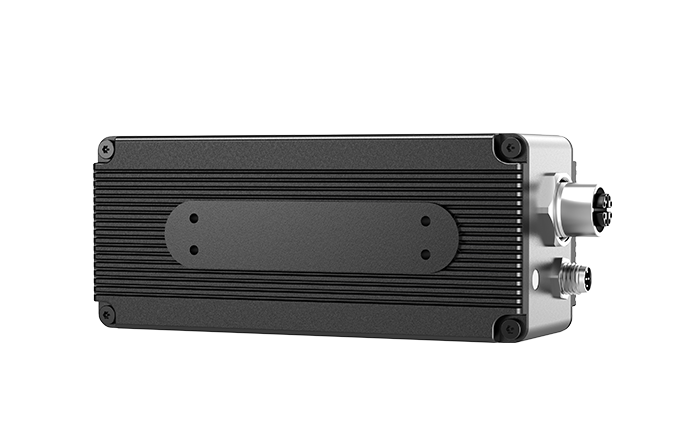

NYX Series - 650

Brand-new Vzense 3D ToF Camera Based on Pulse iToF Technology

Highlight

  • Based on Pulse iToF TechnologyBased on Pulse iToF Technology
  • Strong Light Resistance Strong Light Resistance
  • Wide Dynamic RangeWide Dynamic Range
  • Energy SavingEnergy Saving
  • High Cost PerformanceHigh Cost Performance
  • Multiple Camera Co-existence SupportMultiple Camera Co-existence Support
  • Specifications
  • Accessories
  • Test Data
  • Downloads
  • FAQ
NYX Series - 650Specification NYX660 NYX650
Product Name NYX660 NYX650
ToF Sensor Pulse iToF , 640*480dpi Pulse iToF , 640*480dpi
ToF Frame Rate Max. 15fps Max. 15fps
Emitter 940nm VCSEL*2 940nm VCSEL*2
ToF Field of View 70°(H)* 50°(V) 70°(H)* 50°(V)
RGB Module Global Shutter, 1600*1200dpi Global Shutter, 1600*1200dpi
RGB Field of View 70°(H)* 50°(V) 70°(H)* 50°(V)
Power Supply PoE+/12V~24V DC 12V~24V DC
Physical Connection M12 + M8 Aviation Plugs RJ45+M8 Aviation Plugs
Communication 1000M ethernet&RS485 1000M ethernet&RS485
Output Format 16bit(depth)+8bit(IR)+JPEG(RGB) 16bit(depth)+8bit(IR)+JPEG(RGB)
Accuracy 1%~2% 1%~2%
Work Range 0.3~4.5m 0.3~4.5m
Work Temperature -20°C ~ 50°C -20°C ~ 50°C
Operation System & Platform Windows/Linux/Arm Linux/ROS1/ROS2 Windows/Linux/Arm Linux/ROS1/ROS2
SDK Support C/C++/Python C/C++/Python
IP Rating IP67 IP42

M12 X CODE CAT6a Ethernet Cable

  • M12 X CODE CAT6a Ethernet Cable
  • -24AWG 4 Pair， shielded Twisted Pair -Aviation Connector to RJ45 -Cord Length: 3m

M8 A CODE 6PIN Multiple Functional Cable

  • M8 A CODE 6PIN Multiple Functional Cable
  • Cord Length: 2m
Download

CAT6 Ethernet Cable

  • CAT6 Ethernet Cable
  • 23AWG 4 Pair, Shielded Twisted Pair Cord Length: 3m

M8 A CODE 6PIN Multiple Functional Cable

  • M8 A CODE 6PIN Multiple Functional Cable
  • Cord Length: 2m
Download

Learn more in Downloads

Learn more inDownloads

Learn more in GitHub or FAQ for SDK question
